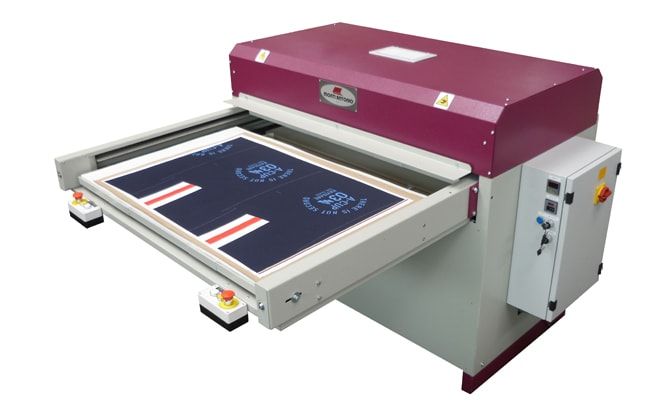

Monti Mod 803
Pneumatic double press for transfer printing and laminating
HEAT TRANSFER MACHINE WITH DOUBLE FLAT BED PRESS
PLATES DIMENSIONS
(46 x 29.5) inch x2
Monti mod 803 Double plate Heat press for transfer printing suitable for production and sampling of sportswear, bathing suits, transfer and flock application, advertising and sportswear articles.
| Maximum working dimensions | 45.2 x 29.5 inc |
| Working planes dimensions | 46 x 29.5 inc |
| Movement of working planes | Motorized planes |
| Installed power | 6.5 Kw/h |
| Average consumption | 4 Kw/h |
| Pneumatic pressure | 8 Bar |

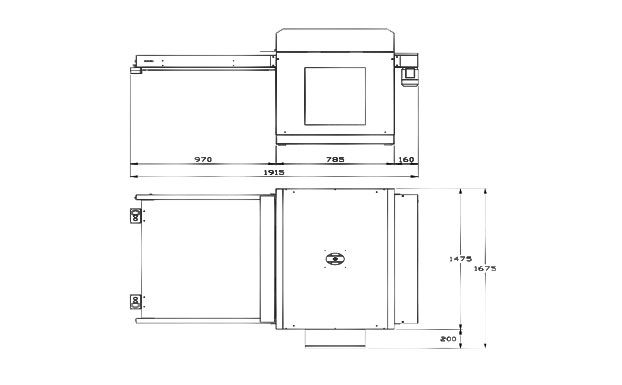

| Overall dimensions | 1.970 x 2.400 x 1.250 mm |
| Net weight | 700 Kg |
| Power supply | 230 volt 3 fasi 50/60 Hz |
| 415 volt 3 fasi 50/60 Hz | |
| Maximum electrical input | 415 volt A 9,3 Amp |
| 230 volt A 16,3 Amp | |
| Resistances power for upper heating plane | 6 Kw |
| Planes translation motor power | 0.09 v |
| Transformer | 0.2 Kw |
| Plate temperature | 225 °C |
| Working plane height | 35.4 inc |
 |
|
- T-shirt
- sports wear
- Necktie
- scarf
- pillow cover
- towel
- cushion cover
- table cloth
- flags
- back-lit display
- drop display
- indoor display
- lingeries
- tents
- umbrella
- canvas
- mouse pad
- key-chains
- frames
- bottle
