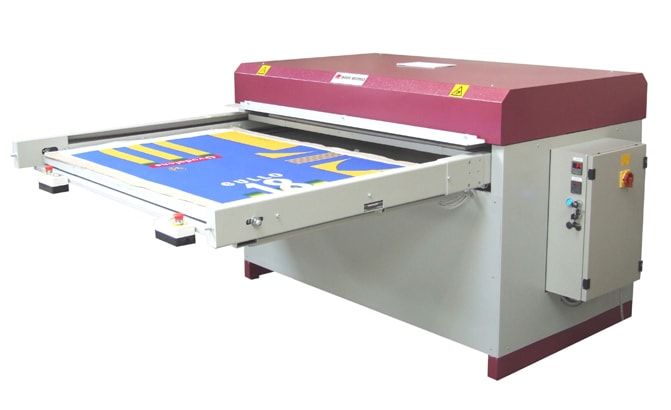

Monti Mod 802

Hydraulic double press for transfer printing

HEAT TRANSFER MACHINE WITH DOUBLE FLAT BED PRESS

PLATES DIMENSIONS
(59.06 x 39.37) inch x2

Monti Mod 802 Double plate heat press for transfer printing suitable for production and sampling of sportswear, bathing suits, transfer and flock application, advertising and sportswear articles.

Maximum width of work	55.11 x 35.4 inc
Printing planes dimensions	59.02 x 39.3 inc
Total power installed	11.5 Kw
Average consumption	7.5 Kw
Power supply	230 volt 3 fasi 50/60 Hz
Power supply	400 volt 3 fasi 50/60 Hz
Maximum electrical input	230 volt 29A Amp
Maximum electrical input	230 volt 17A Amp
Resistances power for upper heating plane	9+10%=10 Kw
Resistances power for upper heating plane	(n°9 da 1000 watt.)
oil pump motor power	1.1 Kw
Planes translation motor power	0.09 Kw
Transformer	0.2 Kw
Maximum pressure oil	140 Bar
Plate temperature	225 °C
Working plane height	37.4 inc
Net weight	890 Kg
Movement of working planes	manual

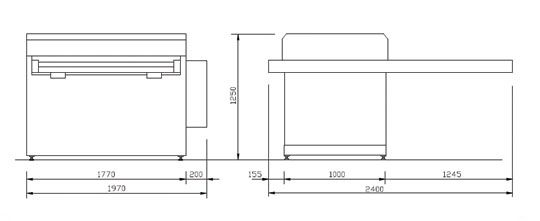

Overall dimensions	1.970 x 2.400 x 1.250 mm
