Monti Mod 120T
calendar for transfer printing on cut pieces & role fabrics
-
Monti Mod 120T
calendar DIMENSIONS
51.1 inch

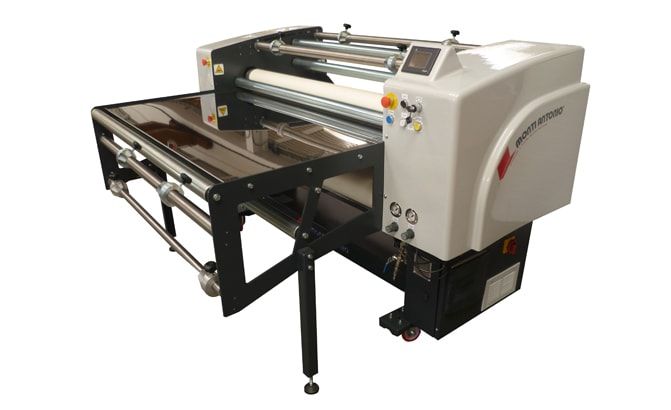

Innovative and versatile printing calendar (movable on wheels) suitable for both the transfer of dye sublimation inks from paper to materials to be printed, and for the reactivation of inks directly printed on textile by means of plotters.It is supplied complete with front preparation table, allowing the transfer/reactivation of both rolls and materials in piece.
- SPECIAL CALENDAR FOR PRINTING - Ø MM 200
- Special calendar for continuous transfer printing on cut pieces and roll-fed fabrics
| Cylinders width | 51.1 inc |
| Maximum working width | 45.2 inc |
| Mechanical speed | 0.1 - 1.7 mt/min |
| Total installed power | 7 Kw |
| Average consumption | 5 Kw |
| Maximum current absorption | In 400 V= 10 A’ In 230 V= 17,5 A’ |
| Printing roller electric motor power | 0.18 Kw |
| Printing roller heating element power | 6.5 Kw |
| Transformer | 0.5 |
| Feeding compressed air pressure | Min 3 – Max 8 Bar |
| Compressed air consumption ( 20° C ) | 1 lt/min. |
| Net weight of machine body | 640Kg |
- T-shirt
- scarf
- pants
- saree
- bed-sheet
- towel
- cushion cover
- curtain
- POP Display
- flags
- back-lit display
- drop display
- umbrella
- automobile interior
- footwear
- foiling
- mouse pad
- cap
- mugs
- key-chains
