Gas conveyor dryer for textile screen printing
Sprint 3000T is the most innovative gas conveyor dryer in the screen printing industry. It features three independent conveyor belts on three levels that deliver maximum drying capacity in a minimal footprint. In fact, Sprint 3000T manages to squeeze over 914 cm (30') of belt travel in the space required for a 366 cm (12') heat chamber. The infeed carries substrates to the top level and smoothly transfers them to the middle belt. The middle belt carries those substrates back through the chamber in the opposite direction before making another smooth transfer to the bottom belt. The bottom belt carries them through the heat chamber a third time before delivering them to the outfeed.
| Belt Width | 72 inc |
| Burner Input Maximum | 390 000 BTU |
| Burner Width | 117.5 inc |
| Electrical Requirements | 208/230 V, 3 ph, 39/38 A, 50/60 Hz, 9.3 kw 380/415 V, 3 ph, 22/21 A, 50 Hz, 9.3 kw |
| Exhaust Blower Size | 12 inc |
| Exhaust System Capacity @ 6 mm (1/4”) Static Pressure | 62298 l/min (2200 cfm) |
| Gas Input Size | 1 inc |
| Heat Chamber Length | 144 inc |
| Heat Chamber Width | 95 inc |
| LP/Natural Gas Input Pressure | 5 inc w.c. |
| Shipping Weight | 3855 kg |
| Standard Infeed/Outfeed Length | 9 inc |
Gas conveyor dryer for textile screen printing

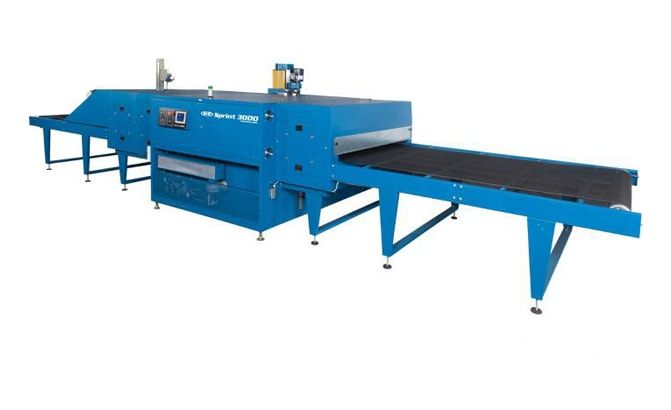

Sprint 3000 is the latest incarnation of the most innovative and dependable line of gas conveyor dryers in the screen printing industry. For over twenty years, M&R’s venerable Sprint Series has been the overwhelming choice of professional screen printers who demand quality, consistency, and efficiency in their equipment and in the output they generate. Sprint 3000’s large color touchscreen control center features icon-based labeling and can display information and commands in multiple languages. The control center displays real-time dryer performance data, including dryer temperature, dryer temperature history; and output from the included temperature probe, which can be used to track substrate temperature as it passes through the dryer.
| Belt Width | 38 inc |
| Burner Input Maximum | 200 000 BTU |
| Burner Width | 77.5 inc |
| Electrical Requirements | 208/230 V, 1 ph, 19/18 A, 50/60 Hz, 2.9 kw 208/230 V, 3 ph, 12/11 A, 50/60 Hz, 2.9 kw 380/415 V, 3 ph, 10 A, 50 Hz, 2.9 kw |
| Electrical requirements for 24 inc Optional Radiant Section | 208/230 V, 1 ph, 19/21 A, 50/60 Hz, 3.7 kw 208/230 V, 3 ph, 11/12 A, 50/60 Hz, 3.7 kw 380/415 V, 3 ph, 8 A, 50 Hz, 3.7 kw |
| Exhaust Blower Size | 12 inc |
| Exhaust System Capacity @ 6 mm (1/4”) Static Pressure | 50970 l/min (1800 cfm) |
| Expansion Heat Modules | 24 inc |
| Gas Input Size | 1 inc |
| Heat Chamber Length | 96 - 240 inc |
| Heat Chamber Width | 53 inc |
| LP/Natural Gas Input Pressure | 5 inc w.c. |
| Overall Length | 240 - 431 inc |
| Shipping Weight | 1496 kg |
| Standard Infeed/Outfeed Length | 48 / 96 inc |
Gas conveyor dryer for textile screen printing
Sprint is the most venerated name in gas dryers, with more than two decades leading the industry in innovation, efficiency, durability, and affordability. And Sprint 2000 high-production screen printing conveyor dryers are worthy heirs to that tradition. Sprint 2000 models are available in a wide variety of configurations, with dryer belt widths from 97 to 183 cm (38" to 72"). Not only does each Sprint 2000 model have the highest production capacity in its class, each is also the most energy efficient. Heavy-duty thermal insulation prevents heat from migrating from the conveyor dryer chamber into the workplace, while CoolSkin™ technology leaves the dryer skin cool to the touch.
| Belt Width | 38 inc |
| Burner Input Maximum | 200 000 Btu |
| Burner Width | 75 inc |
| Electrical Requirements | 208/230 V, 1 ph, 15/14 A, 50/60 Hz, 2.3 kW 208/230 V, 3 ph, 10/9 A, 50/60 Hz, 2.3 kW 380/415 V, 3 ph, 8 A, 50 Hz, 2.3 kW |
| Electrical requirements for 24 inc Optional Radiant Section | 208/230 V, 1 ph, 19/21 A, 50/60 Hz, 3.7 kW 208/230 V, 3 ph, 11/12 A, 50/60 Hz, 3.7 kW 380/415 V, 3 ph, 8 A, 50 Hz, 3.7 kW |
| Exhaust Blower Size | 12 inc |
| Exhaust System Capacity @ 6 mm (1/4”) Static Pressure | 33 980 l/min (1200 cfm) |
| Expansion Heat Modules | 24 inc |
| Gas Input Size | .75 inc |
| Heat Chamber Length | 96 - 192 inc |
| Heat Chamber Width | 54 inc |
| LP/Natural Gas Input Pressure | 5 inc w.c. |
| Overall Length | 192 - 288 inc |
| Shipping Weight | 1452 kg |
| Standard Infeed/Outfeed Length | 48 inc |
