DGI FT 3204X

250 m²/hr
1440 dpi
3.2 m
4 colour

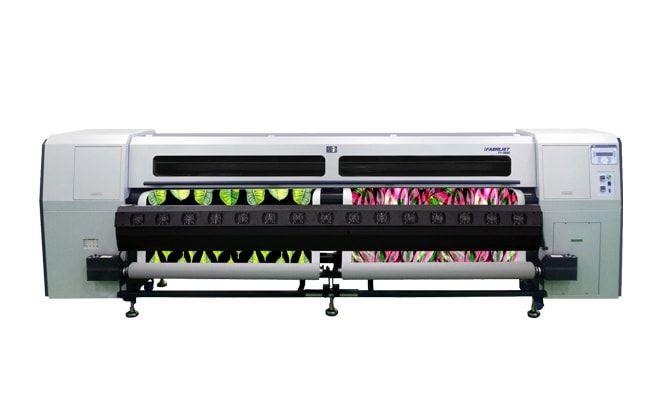

Fabrijet FT 3204X is a 3.2m wide format dye sublimation printer having 8 printheads printing at maximum speed of 250m2/h. Enhanced with dual roll system, capable to print two rolls of 1.6m at same time. Best suited solution for home textile and large format soft signage applications.

World first panasonic printhead adopted
8 Printhead stagger arrangement.
Max speed 250m²/h (360 x 360 dpi : 1 pass / Normal)
Normal production mode 70 m²/h (720x720 dpi : 4 pass interleave / DBF I mode)
Solution for home textile and large format soft signage.
Enhanced with Dual roll system, capable to print two rolls of 1.6m at same time.

Print head	Panasonic 820DG - 8EA
Ink	DGI Original Eco-Solvent Ink ( ES211)
Drop Size	3, 8, 11 pl – Variable dot
Media	Vinyl, Flex, Banner
Max Print Width	3,320 mm
Max Media Width	3,370 mm
Print Mode	Uni/Bi, Normal/Interleave I,II
Interface	TCP / IP, USB 3.0
Resolution(DPI)	Max 1,440 DPI
Rip Software	Wasatch TX
Color	4 Color (Cyan, Magenta, Yellow, Black)
Operating environment	Temperature : 20~28 Humidity : 40~70%
Environmental Rage	Temperature : 20~28 Humidity : 40-70%
Electricity	Single Phase 220V (50/60Hz, AC) Main 5A, 6.6Kw Heater 20A
Dimensions	Uncrated : 5.020mm(L) x 1,050mm(W) x 1,560mm(H) Crated : 5.200mm(L) x 1,150mm(W) x 1,940mm(H)
Weight	Uncrated : 940Kg Crafted : 1,640Kg
