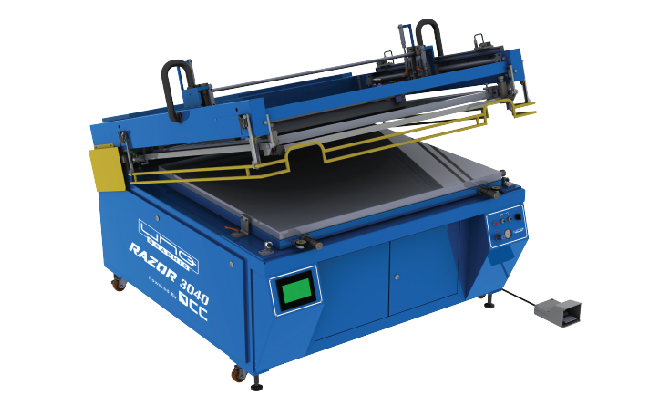

UNQ Razor 3040
Your Companion for a New Leap in Graphic Prinitng
Your companion for a new leap in graphic printing
Features
- Maximum dry cycle speed 1000 pcs/per hour
- Adjustable squeegee skew angle helps to deposit even ink all over image on uneven substrates
- 3 Point Micro Registration System
- Caster wheel for easy mobility
- Quick & tool free print stroke length adjustment
- Quicker setup time with tool free installation and removal of squeegee and floodbar
- Adjustable peel off system with variable timer ensures good & sharp print results
- Independent squeegee and floodbar pressure control
- Vacuum by foot to register on curly substrates accurately
| SPECIFICATIONS | Razor 3040 | |||
| Maximum Print Area | 30 x 40" (75 x 100 cm) | |||
| Maximum Screen Frame Size | 46 x 56" (115 x 140 cm) | |||
| Minimum Screen Frame Size | 20 x 22" (50 x 55 cm) | |||
| Maximum Substrate Thickness | 20 mm | |||
| Screen Frame Thickness | 1.0 - 1.5" | |||
| Squeegee Holder Size | 42" (107 cm) | |||
| Floodbar Size | 44" (112 cm) | |||
| Electrical Specifications* | 208-230 V AC, 16 Amps, 1 Ph, 50/60 Hz | |||
| Power Consumption | 3.5 HP / 2.6 kW | |||
| Air Consumption | Max. 6 kg /cm², 95 Lit / Min. | |||
| Dimensions | 6.0' (L) x 6.5' (W) x 4.5' (H), 183 (L) x 198 (W) x 137 (H) cm |
|||
| Weight | 812 kg | |||
| *Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply | ||||
