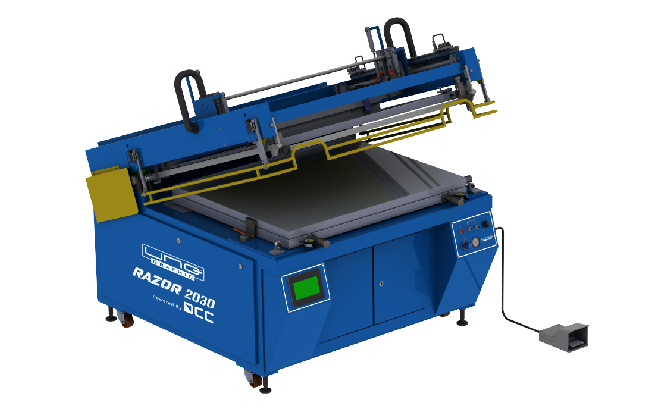

UNQ Razor 2030
Your Companion for a New Leap in Graphic Prinitng
YOUR COMPANION FOR A NEW LEAP IN GRAPHIC PRINTING
Limitless Applications for Maximum Profitability
Ideal for applications where absolute precision is critical
Features
- Maximum dry cycle speed 1000 pcs/per hour
- Adjustable squeegee skew angle helps to deposit even ink all over image on uneven substrates
- 3 Point Micro Registration System
- Caster wheel for easy mobility
- Quick & tool free print stroke length adjustment
- Quicker setup time with tool free installation and removal of squeegee and floodbar
- Adjustable peel off system with variable timer ensures good & sharp print results
- Independent squeegee and floodbar pressure control
- Vacuum by foot to register on curly substrates accurately
| SPECIFICATIONS | Razor 2030 | |||
| Maximum Print Area | 36 x 46" (90 x 115 cm) | |||
| Maximum Screen Frame Size | 20 x 22" (50 x 55 cm) | |||
| Minimum Screen Frame Size | 20 x 22" (50 x 55 cm) | |||
| Maximum Substrate Thickness | 20 mm | |||
| Screen Frame Thickness | 1.0 - 1.5" | |||
| Squeegee Holder Size | 32" (81 cm) | |||
| Floodbar Size | 34" (86 cm) | |||
| Electrical Specifications* | 208-230 V AC, 16 Amps, 1 Ph, 50/60 Hz | |||
| Power Consumption | 3 HP/2.3 kW | |||
| Air Consumption | Max. 6 kg/cm², 95 Lit/Min. | |||
| Dimensions | 5.2' (L) x 5.6' (W) x 4.5' (H), 158 (L) x 171 (W) x 137 (H) cm |
|||
| Weight | 670 kg | |||
| *Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply | ||||
