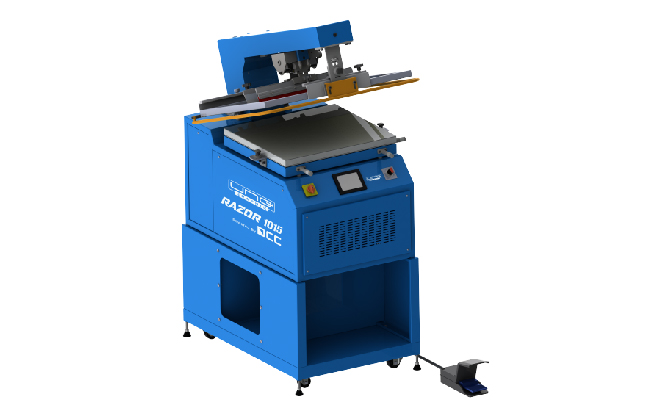

UNQ Razor 1015
One Innovation, Many Generations.
Plug & Play- No Special Infrastructure Needed.
No Noisy & Expensive Compressor Required.
Limitless applications for maximum profitability. Ideal for applications where absolute precision is critical.
Features
- High quality at high speed production with a dry cycle speed of 1550/hour
- Better turnaround time where peel-off timer can be adjusted from 1-9 secs to achieve high quality prints
- Independent squeegee and flood bar pressure control
- Lightweight vacuum bed with micrometer to get accurate registration
- Quicker setup time with tool free installation and removal of squeegee and floodbar
- Easy mobility with caster wheels
| SPECIFICATIONS | Razor 1015 | |||
| Max Print Area | 10 x 15” (25 X 38 cm) | |||
| Max. Screen Frame Size | 26 x 20” (65 x 50 cm) | |||
| Min. Screen Frame Size | 20 x 12” (50 x 30 cm) | |||
| Max Substrate Thickness | 3 mm | |||
| Screen Frame Thickness | 1.0” -1.5” | |||
| Squeegee Holder Size | 17” (43 cm) | |||
| Floodbar Size | 19” (48 cm) | |||
| Electrical Specifications* | 208-230 V AC, 1 Ph, 2 Amps, 50/60 Hz | |||
| Power Consumption | 0.75 HP (0.56 kW) | |||
| Dimensions | 85.3(L) x 73(W) x 119(H) (cm) 2.8’(L) x 2.38’(W) x 3.9’(H) (ft) |
|||
| Weight | 160 Kg | |||
| *Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply | ||||
