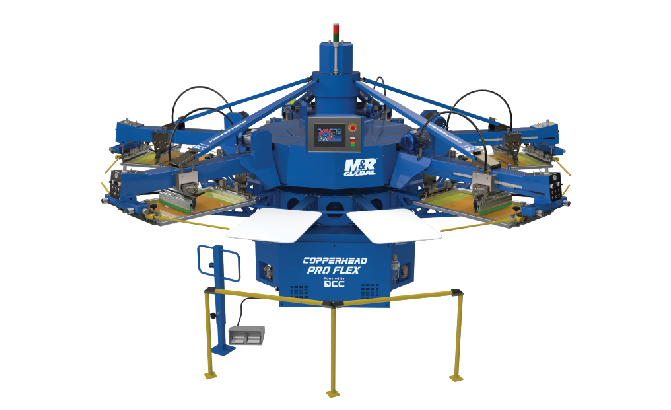

Copperhead Pro Flex
Best First Automatic Press
M&R Global DCC's Copperhead Pro Flex™ presses are the benchmark in automatic screen printing presses, combining highest quality components, leading-class craftsmanship and high-speed production to create an outstanding press at an affordable price. An electric indexing system enables extremely smooth and quiet operation. The included, innovative squeegee pressure equalizer system with regulators on each printhead speeds setup and ensures uniform ink deposit for excellent print quality.
Electric printheads, tool-free squeegee/floodbar angle adjustment, pneumatic screen frame clamps and independent squeegee/flood speeds provide operators with all the time-saving features needed for quick setups.
Features
- Available In 10 Stations
- Standard Pallet Size: 38 x 56 cm (15" x 22")
- Maximum Image Area: 35 x 38 cm (14" x 15")
- Standard Front- and Rear-Locking Micro-Registration
- Standard Pneumatic Screen Frame Clamps
- High-Resolution Touchscreen Control Panel with Easy-to-Use, Icon-Based Logic and Built-In Tutorial Screens
- Print Stack Mode Enables HD and Other Specialty Print Technique
| SPECIFICATIONS | PRO FLEX 10/8 |
| Air @ 7 Bar (102 psi) | 565 l/min (20 cfm) |
| Electrical Requirements1 | 380-415 V, 3 ph, 14.5 A, 50 Hz, 6.75 kW |
| Diameter | 416 cm (164”) |
| Maximum Frame Size | 51 x 69 cm (22" x 27") OD |
| Standard Image Area | 35 x 38 cm (14" x 15") |
| Machine Weight | 1592 kg (3510 lb) |
| Standard Pallet Size | 38 x 56 cm (15" x 22") |
| Stations/Colors | 10/8 |
| 1Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly. | |
