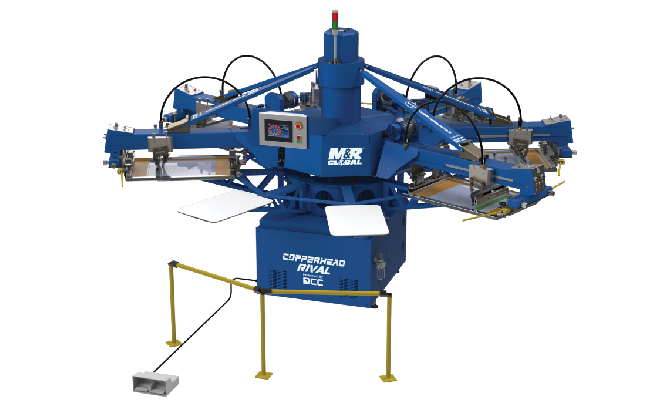

Copperhead Rival
Round Automatic Screen Printing Press
M&R Global's Copperhead Rival™ presses are a the benchmark in automatic screen printing presses, combining highest quality components, leading-class craftsmanship and high-speed production to create an outstanding press at an affordable price.
An electric indexing system enables extremely smooth and quiet operation. The included, innovative squeegee pressure equalizer system with regulators on each printhead speeds setup and ensures uniform ink deposit for excellent print quality.
Electric printheads, tool-free squeegee/floodbar angle adjustment, pneumatic screen frame clamps and independent squeegee/flood speeds provide operators with all the time-saving features needed for quick setups. The Copperhead Rival is compatible with M&R Tri-Loc® system for the ultimate in print registration speed, accuracy and consistency.
Features
- Available In 1 and 3 phase
- Available In 8, 10, 12 and 14 Stations
- Standard Pallet Size: 40 x 63 cm (16” x 25”)
- Standard Image Area: 40 x 50 cm (16” x 20”)
- Standard Pallet Size: 11 x 23 cm (4.3" x 9")
- Standard Front and Rear-Locking Micro-Registration
- Standard Pneumatic Screen Frame Clamps
- High-Resolution Touchscreen Control Panel with Easy-to-Use, Icon-Based Logic and Built-In Tutorial Screens
- Print Stack Mode Enables HD
| SPECIFICATIONS | RIVAL 8/6 | RIVAL 10/8 | RIVAL 12/10 | RIVAL 14/12 |
| Air @ 7 Bar ( 102 psi) |
495 l/min (17.5 cfm) |
565 l/min (20.0 cfm) | 755 l/min (26.7 cfm) | 825 L/min (29.1 cfm) |
| Electrical Requirements1 | 208-230 V, 1 ph, 18A, 50/60 Hz, 3.25 kW (UL/CE) 208-230 V, 3 ph, 10.5 A, 50/60 Hz, 3.25 kW (UL) 380-415 V, 3 ph, 7 A, 50 Hz, 3.25 kW (CE) |
208-230 V, 1 ph, 22A, 50/60 Hz, 4 kW (UL/CE) 208-230 V, 3 ph, 15 A, 50/60 Hz, 4 kW (UL) 380-415 V, 3 ph, 10 A, 50 Hz, 4 kW (CE) |
208-230 V, 1 ph, 26A, 50/60 Hz, 4.75 kW (UL/CE) 208-230 V, 3 ph,15 A, 50/60 Hz, 4.75 kW (UL) 380-415 V, 3 ph, 10 A, 50 Hz, 4.75 kW (CE) |
208-230 V, 1 ph, 30A, 50/60 Hz, 5.5 kW (UL) 208-230 V, 3 ph,17.5 A, 50/60 Hz, 5.5 kW (UL) 380-415 V, 3 ph, 11 A, 50 Hz, 5.5 kW (CE) |
| In-built Flash Cure Plugins |
2 | 3 | 4 | 5 |
| Diameter | 391 cm (154") | 416 cm (164”) | 448 cm (176” ) | 472 cm (185” ) |
| Maximum Frame Size |
58 x 84 cm (23” x 33") |
58 x 84 cm (23” x 33") | 58 x 84 cm (23” x 33") | 58 x 84 cm (23” x 33") |
| Standard Image Area | 41 x 51 cm (16” x 20”) |
41 x 51 cm (16” x 20”) | 41 x 51 cm (16” x 20”) | 41 x 51 cm (16” x 20”) |
| Maximum Rated Image Area | 46 x 51 cm (18” x 20”) |
46 x 51 cm (18” x 20”) | 46 x 51 cm (18” x 20”) | 46 x 51 cm (18” x 20”) |
| Machine Weight |
1257 kg (2771 lb) |
1592 kg (3510 lb) | 1822 kg (4017 lb) | 2350 kg (5181 lb) |
| Standard Pallet Size | 41 x 64 cm (16” x 25”) |
41 x 64 cm (16” x 25”) | 41 x 64 cm (16” x 25”) | 41 x 64 cm (16” x 25”) |
| Stations/Colors | 8/6 | 10/8 |
12/10 | 14/12 |
| 1Use uninterruptible power supply (UPS) to safeguard machine
from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly. Contact M&R Global/ your nearest dealer for total amperage in case of using built-in flash sockets. |
||||
- T-Shirt
- Jackets
- Hoodies
