Poblano
Your solution to rapid curing

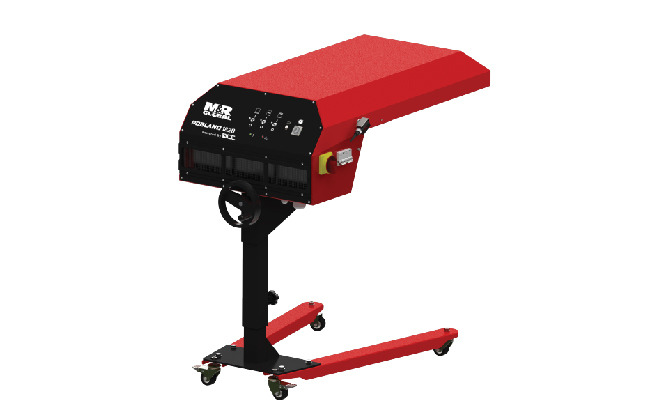

Poblano is M&R Global DCC’s versatile freestanding quartz flash cure system. It has a universal design that can fit most brands’ presses. An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches. It uses medium-wave filament quartz lamps which provide exceptional heating. The curing lamps are divided into three flashing zones, which can be operated independently or in any combination. Flash cure duration can be controlled by a timer. The flash cure unit ensures consistent curing with a reflector array & forced air heat exchange. Smooth-rolling, locking casters make moving the flash fast & easy.
| SPECIFICATIONS | POBLANO 1820 | POBLANO 2030 | ||
| Curing Area | 46 x 51 cm (18" x 20") | 51 x 76 cm (20" x 30") | ||
| Electrical Requirements1 | 208-230 V, 1 ph, 73 A, 50 Hz, 13.5 kW (CE) 380-415 V, 3 ph, 24 A, 50 Hz, 13.5 kW (CE) |
380-415 V, 3 ph, 40 A, 50/60 Hz, 21.7 kW (CE) | ||
| Machine Dimension (L x W) | 107 x 64 cm (42.2" x 25.3") | 133 x 64 cm (52.2" x 25.3") | ||
| Machine Height | 101 cm - 121 cm (Adjustable) | 101 cm - 121 cm (Adjustable) | ||
| Weight | 65 kg (143.3 Ibs) | 72 kg (159 Ibs) | ||
| 1 Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly |
||||
