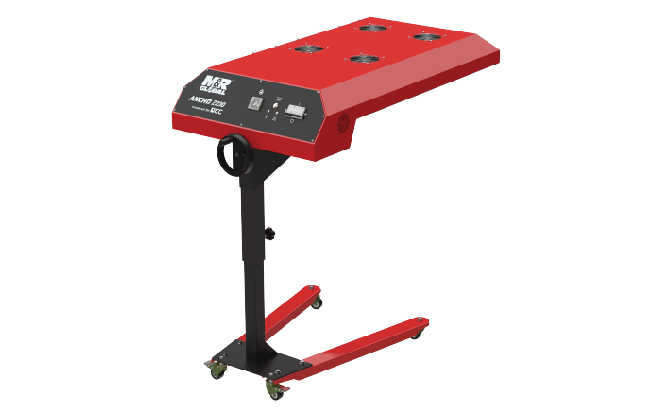

Ancho
A Versatile Freestanding Quartz Flash Cure System
Ancho is M&R Global’s versatile freestanding quartz flash cure system. It has a universal design that can fit most brands’ presses. An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches. It uses medium wave filament quartz lamps and flash cure duration can be controlled by an analog timer.
All the lamps can be individually controlled with the toggle switches present on the flash body. Lamp height can be adjusted up to 121 cm (48”). Smooth rolling, locking casters makes moving the flash fast & easy.
| SPECIFICATIONS | ANCHO 1820 | ANCHO 2230 | ANCHO 2840 | |
| Curing Area | 46 x 51 cm (18” x 20”) | 56 x 76 cm (22” x 30”) | 71 x 101 cm (28” x 40”) | |
| Electrical Requirements1 | 208-230 V, 3 ph, 38 A, 50/60 Hz, 12.0 Kw 380-415 V, 3 ph, 22 A, 50 Hz, 12.0 kW |
208-230 V, 3 ph, 49 A, 50/60 Hz, 15.6 Kw 380-415 V, 3 ph, 28.5 A, 50 Hz, 15.6 kW |
380-415 V, 3 ph, 40 A, 50 Hz, 21.6 kW | |
| Machine Dimension (L x W) | 102 x 61 cm (43" x 24") | 124 x 68 cm (48.9" x 26.8") | 155 x 81 cm (61" x 32") | |
| Machine Height | 101 cm - 121 cm (Adjustable) | 101 cm - 121 cm (Adjustable) | 101 cm - 121 cm (Adjustable) | |
| Weight | 58 kg (128 Ibs) | 70 kg (154 Ibs) | 102 kg (225 Ibs) | |
| 1 Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly |
||||
