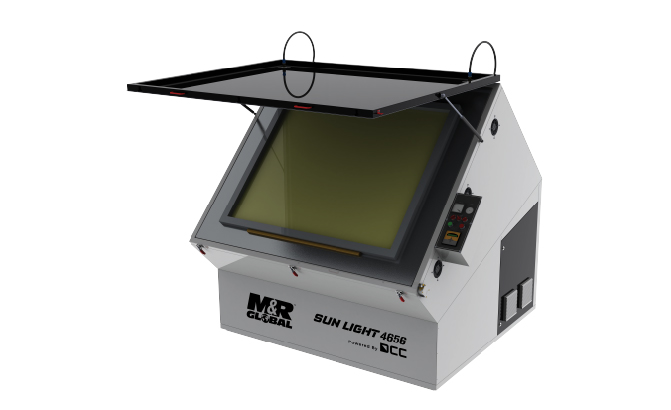

Sun Light 4656
Precision Exposure for Perfect Prints
The Sun Light 4656 is installed with a high quality metal halide lamp coupled with mirror finish reflector which delivers faster exposure and increases light efficiency – best suited for dual cure and photopolymer emulsions, It is the best system to reproduce fine details; it is also best suited for all modern photopolymer emulsions, capillary films and even thick films exposing.
A digital light integrator provided in the Sun Lite ensures perfect exposure with consistency and repetition accuracy. The light integrator is incorporated with a sensor to make sure there is no failure of screen exposure due to over/under exposure owing to any power fluctuation. Moreover, the light integrator automatically compensates the exposure time as the lamp ages.

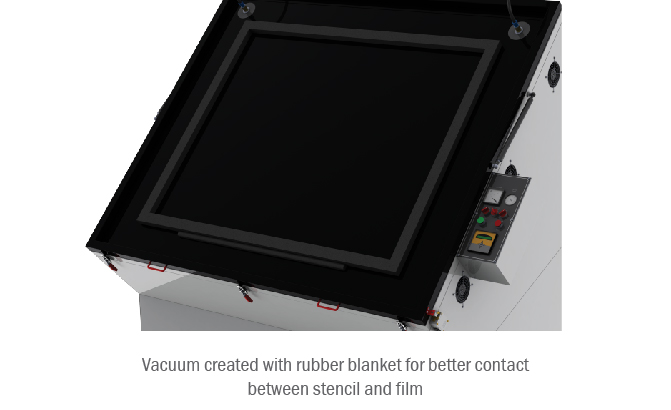

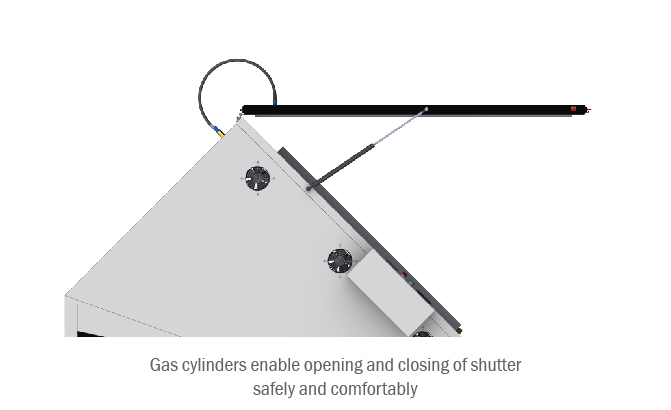

Highly stretchable good quality vacuum rubber blanket makes perfect contact between fabric and positives for quality reproduction and delivers finer reproduction details and produces sharp edges. Moreover, vacuum blanket along with two gas cylinder allows placing the screen frame on transparent glass comfortably.
Features
- Space Saving
- Metal Halide Lamp
- Highly Stretchable Vacuum Rubber Blanket
- Cooling System For Glass Surface Temperature
- Light Integrator
- Shutter Release System For Continuous Screen Exposing
- Lamp Hour Meter
- Mirror Finish Reflector
| SPECIFICATIONS | SUN LIGHT 4656 | |||
| Maximum Exposing Area | 75 x 100 cm (30" x 40") | |||
| Maximum Screen Frame Size | 117 x 142 cm (46" x 56") OD | |||
| Lamp Wattage | 3000 W | |||
| Electrical Requirements* | 400-440 V, 3 ph, 16.5 A, 50 Hz, 4 kW | |||
| Machine Dimensions (L x W x H) | 204 x 198 x 195 cm (80" x 78" x 77") | |||
| Total Machine Weight | 424 kg (935 lb) | |||
| Stations/Colors | 8/1, 8/2, 8/3, 10/4 | |||
| * Use servo stabilizer to safeguard machine from voltage fluctuation out of main supply. | ||||
