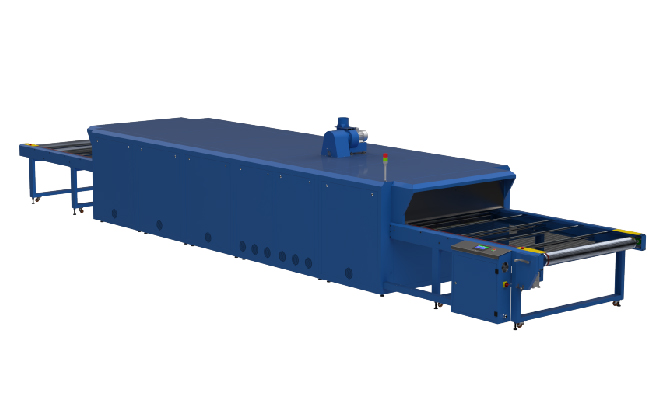

Copperhead TurboCure
An Advanced Industrial Textile Conveyor Dryer
Energy efficiency, easy maintenance, expandable curing capacity, a safer working environment, and more – the new Copperhead TurboCure delivers everything you need in an industrial textile dryer.
Designed to meet the rigorous demands of large-scale printing, the Copperhead TurboCure features a modular construction that allows you to expand belt capacity as your business grows.
Equipped with air-handling and Cool-Skin technologies, it enables up to 90% air recirculation while keeping the machine’s exterior cool.
Its advanced operational systems & easy-to-maintain design make the Copperhead TurboCure a reliable, long-lasting solution.
Available in both gas and electric variants, the Copperhead TurboCure is versatile enough to cure a wide range of plastisol, water-based, and DTG inks.
Features
- ADVANCED Air Handling Technology
- EASY Maintenance
- MULTIPLE Variants
- SMART Control Center
- STURDY Construction & Design
TURBOCURE GAS DRYER SPECIFICATIONS
| SPECIFICATIONS | TURBOCURE GAS 48/10 |
TURBOCURE GAS 48/14 |
TURBOCURE GAS 48/18 |
TURBOCURE GAS 48/22 |
| Belt Width | 122.0 cm (48") | 122.0 cm (48") | 122.0 cm (48") | 122.0 cm (48") |
| Burner Input Maximum | 320000 Btu | 320000 Btu | 320000 Btu | 320000 Btu |
| Gas Input Size | 19.5 mm (3/4") | 19.5 mm (3/4") | 19.5 mm (3/4") | 19.5 mm (3/4") |
| Average Gas (LPG) Consumption1 | 1.8 kg/hr | 1.8 kg/hr | 2.2 kg/hr | 2.2 kg/hr |
| Rated Electrical Requirements2,3 |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
| Exhaust Blower System | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) |
| Heat Chamber Length | 305 cm (10') | 427 cm (14') | 549 cm (18') | 670 cm (22') |
| Overall Dimensions (L x W x H) | 805 cm (317") x 206.2 cm (81.2") x 197 cm (77.5") | 927 cm (365") x 206.2 cm (81.2") x 197 cm (77.5") | 1050 cm (413") x 206.2 cm (81.2") x 197 cm (77.5") | 1170 cm (461") x 206.2 cm (81.2") x 197 cm (77.5") |
| Total Machine Weight | 1740 kg (3836 lbs) | 2230 kg (4916 lbs) | 2720 kg (5997 lbs) | 3150 kg (6944 lbs) |
| Standard Infeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
| Standard Outfeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
| SPECIFICATIONS | TURBOCURE GAS 60/10 |
TURBOCURE GAS 60/14 |
TURBOCURE GAS 60/18 |
TURBOCURE GAS 60/22 |
| Belt Width | 152.4 cm (60") | 152.4 cm (60") | 152.4 cm (60") | 152.4 cm (60") |
| Burner Input Maximum | 320000 Btu | 320000 Btu | 320000 Btu | 320000 Btu |
| Gas Input Size | 19.5 mm (3/4") | 19.5 mm (3/4") | 19.5 mm (3/4") | 19.5 mm (3/4") |
| Average Gas (LPG) Consumption1 | 2.0 kg/hr | 2.0 kg/hr | 2.4 kg/hr | 2.4 kg/hr |
| Rated Electrical Requirements2,3 |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
208-230 V, 3ph, 14.5 A, 60 Hz, 4.7 kW 380-415 V, 3ph, 8.5 A, 50 Hz, 4.7 kW |
| Exhaust Blower System | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) |
| Heat Chamber Length | 305 cm (10') | 427 cm (14') | 549 cm (18') | 670 cm (22') |
| Overall Dimensions (L x W x H) | 805 cm (317") x 237 cm (93.2") x 197 cm (77.5") | 927 cm (365") x 237 cm (93.2") x 197 cm (77.5") | 1050 cm (413") x 237 cm (93.2") x 197 cm (77.5") | 1170 cm (461") x 237 cm (93.2") x 197 cm (77.5") |
| Total Machine Weight | 1970 kg (4343 lbs) | 2460 kg (5423 lbs) | 2930 kg (6460 lbs) | 3380 kg (7496 lbs) |
| Standard Infeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
| Standard Outfeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
- 1Values derived as average consumption after testing at 180 degree C, 60s Dwell Time and Exhaust as per factory setting. The values can vary with different environmental factors, ink & fabrics used.
- 2General usage may vary, but will be significantly less than stated values.
- 3Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
TURBOCURE ELECTRIC DRYER SPECIFICATIONS
| SPECIFICATIONS | TURBOCURE GAS 48/10 |
TURBOCURE GAS 48/14 |
TURBOCURE GAS 48/18 |
TURBOCURE GAS 48/22 |
| Belt Width | 122.0 cm (48") | 122.0 cm (48") | 122.0 cm (48") | 122.0 cm (48") |
| Average Electrical Consumption1 | 25 kW/hr | 28 kW/hr | 32 kW/hr | 35 kW/hr |
| Rated Electrical Requirements (Electric)2 | 208-230 V, 3ph, 83 A, 60 Hz, 31.0 kW 380-415 V, 3ph, 48 A, 50 Hz, 31.0 kW |
208-230 V, 3ph, 83 A, 60 Hz, 31.0 kW 380-415 V, 3ph, 48 A, 50 Hz, 31.0 kW |
208-230 V, 3ph, 106 A, 60 Hz, 40.0 kW 380-415 V, 3ph, 61 A, 50 Hz, 40.0 kW |
208-230 V, 3ph, 106 A, 60 Hz, 40.0 kW 380-415 V, 3ph, 61 A, 50 Hz, 40.0 kW |
| Exhaust Blower System | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) |
| Heat Chamber Length | 305 cm (10') | 427 cm (14') | 549 cm (18') | 670 cm (22') |
| Overall Dimensions (L x W x H) | 805 cm (317") x 206.2 cm (81.2") x 197 cm (77.5") | 927 cm (365") x 206.2 cm (81.2") x 197 cm (77.5") | 1050 cm (413") x 206.2 cm (81.2") x 197 cm (77.5") | 1170 cm (461") x 206.2 cm (81.2") x 197 cm (77.5") |
| Total Machine Weight | 1740 kg (3836 lbs) | 2230 kg (4916 lbs) | 2720 kg (5997 lbs) | 3150 kg (6944 lbs) |
| Standard Infeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
| Standard Outfeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
| SPECIFICATIONS | TURBOCURE GAS 60/10 |
TURBOCURE GAS 60/14 |
TURBOCURE GAS 60/18 |
TURBOCURE GAS 60/22 |
| Belt Width | 152.4 cm (60") | 152.4 cm (60") | 152.4 cm (60") | 152.4 cm (60") |
| Average Electrical Consumption1 | 28 kW/hr | 31 kW/hr | 34 kW/hr | 38 kW/hr |
| Rated Electrical Requirements (Electric)2 | 208-230 V, 3ph, 97 A, 60 Hz, 35.5 kW 380-415 V, 3ph, 56 A, 50 Hz, 35.5 kW |
208-230 V, 3ph, 97 A, 60 Hz, 35.5 kW 380-415 V, 3ph, 56 A, 50 Hz, 35.5 kW |
208-230 V, 3ph, 125A, 60 Hz, 46 kW 380-415 V, 3ph, 72A, 50 Hz, 46 kW |
208-230 V, 3ph, 125A, 60 Hz, 46 kW 380-415 V, 3ph, 72A, 50 Hz, 46 kW |
| Exhaust Blower System | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) | 14.8cm (5.8") : 7360 L/min (260 cfm) |
| Heat Chamber Length | 305 cm (10') | 427 cm (14') | 549 cm (18') | 670 cm (22') |
| Overall Dimensions (L x W x H) | 805 cm (317") x 237 cm (93.2") x 197 cm (77.5") | 927 cm (365") x 237 cm (93.2") x 197 cm (77.5") | 1050 cm (413") x 237 cm (93.2") x 197 cm (77.5") | 1170 cm (461") x 237 cm (93.2") x 197 cm (77.5") |
| Total Machine Weight | 1970 kg (4343 lbs) | 2460 kg (5423 lbs) | 2930 kg (6460 lbs) | 3380 kg (7496 lbs) |
| Standard Infeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
| Standard Outfeed Length | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") | 250cm (98.5") |
- 1Values derived as average consumption after testing at 180 degree C, 60s Dwell Time and Exhaust as per factory setting. The values can vary with different environmental factors, ink & fabrics used.
- 2General usage may vary, but will be significantly less than stated values.
- Jackets
- T-Shirt
- Caps
- kurti
- Stoles
- table cloth
- towel
