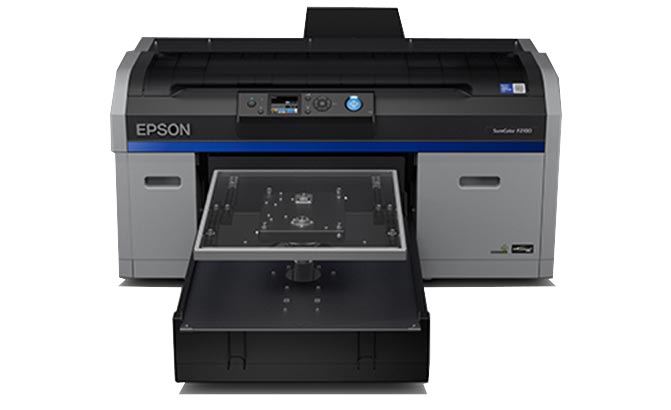

Epson-SC F2130

digital tshirt printing technology for efficient & economical printing

9 Sec/shirt
1440 dpi
16x20 In
5 colour

The SureColor™ SC-F2130 features the latest in digital t-shirt printing technology, making garment printing more efficient and easier than ever before. Engineered to meet the needs of garment printing businesses, the SC-F2130 can print a t-shirt in just 9 seconds*, because of it's Precision Core TFP printhead.

Expect true garment printing reliability with SureColor™ SC-F2130 direct-to-garment printer. Equipped with PrecisionCore™ printhead technology, teamed with an automated maintenance design, the SC-F2130 brings efficiency and quality that are unmatched. Easy to use, with a quick turnaround, the printer increases your overall production, without compromising on quality.

Epson's UltraChrome DG ink works with the Precision Core printhead to deliver the ultimate in print quality with an extremely high resolution of 1440 x 1440 dpi. Printing on dark t-shirts using white ink can be done without having to preedit the image, as the software automatically generates and prints a white under layer.

Print up to 25mm thick t-shirts
Epson PrecisionCore printhead technology
Advanced automated maintenance design
Oeko-Tex ECO PASSPORT certification
Easy to use Garment Creator software

Printing Technology	PrecisionCore TFP® Printhead
Printing Method	Direct to Garment
Print Speeds
Colour Mode	High speed production (2 pass) - 15 sec
White + Colour Mode	High speed production (2 pass Colour + 4 pass White) - 52 sec, Production (4 pass Colour + 8 pass White) - 87 sec
Print Direction	Bi-directional printing, uni-directional printing
Overprint	Yes
Print Quality
Maximum Resolution	Up to 1440 x 1440 dpi (white ink)
	Up to 1440 x 720 dpi (colour ink)
Oeko-Tex100	Product Class 1
Ink System
Ink Type	UltraChrome® DG ink
Colours	Cyan, Magenta, Yellow, Black, White
Ink Tank Capacity	600ml, 250ml (C, M, Y, BK, WH)
Droplet Size	21pl (Standard size)
Media Handling
Substrate Thickness	Up to 25.0mm
Substrate Weight	Up to 1.5kg
Recommended Substrate	Cotton 100%, up to cotton and blend 50%
Interface	Hi-Speed USB x 2 (For PC x 1, For USB flash memory x 1), 10BASE-T/100BASE-TX
USB Flash Memory	Less than 128GB
	Format form: FAT32
	Incompliant for USB memory with an encryption or a security function
	Non-guarantee connected through USB memory reader/writer or extension cable
Control Code	ESC/P raster
Environmental Characteristics
Temperature	Operating: 10°C - 35°C
Humidity	Operating: 20 - 80% (no condensation)
Electrical Specifications
Power Supply	AC 100 - 240 V 50/60Hz 0.7 - 0.4 A
Power Consumption
Operating	Approx. 52W
Standby	Approx. 20W
Sleep	Approx. 10W
Power Off	Less than 0.5W
Memory
Printer	512MB
Network	128MB
Supported Operating System	Window XP, Windows Vista, Windows 7, Windows 8 / MacOSX 10.6.8 - 10.8
	Plugin available for Adobe Photoshop® and Illustrator®
Supported File Format for Print	jpg, tiff, png, bmp
Warranty	1 year
Options
Large Platen 406 x 508mm	C12C933921
Medium Platen 356 x 406mm	C12C933931
Small Platen 254 x 305mm	C12C933941
Extra Small Platen 178 x 203mm	C12C933951
Sleeve Platen 102 x 102mm	C12C933971
Hard Roller	C12C891221
Pre-treatment Roller Set	C12C891201
